Flange Management and Bolted Joint Integrity in Combined Cycle Power Plants

7 Proven Ways Mechanical & Maintenance Engineers Prevent Leaks, Downtime, and Procurement Waste

In Combined Cycle Power Plants (CCPPs), flange management and bolted joint integrity aren’t just a connection point — it’s a pressure boundary, a compliance risk, and a silent determinant of performance. When improperly managed, flange joints become some of the most common — and costly — sources of unplanned shutdowns, energy losses, steam leaks, and even safety violations.

From HRSG inlet manifolds to high-pressure main steam lines, flange integrity defines system reliability.

As engineers on the front line of operational excellence, a deep understanding of flange management and bolted joint integrity, thermal stress behavior, gasket selection, and torque application science is no longer optional — it’s essential.

At ProcureEaze, we collaborate with engineers, maintenance leads, and procurement teams across U.S. CCPPs to provide complete solutions for flange management and bolted joint integrity — including precision flange kits, certified gaskets, tensioning equipment, and torque verification tools. All products are backed by global supplier access and full traceability.

Let’s explore the 7 proven ways you can prevent flange failures and upgrade your plant’s flange management and bolted joint integrity program into a proactive, data-driven discipline.

1. Why Flange Failures Still Happen — Even in the Best Plants

Even with top-tier operations, flange failures continue to plague CCPPs. And it’s not always due to bad products — it’s the practices around them.

Most common causes of flange failure include:

Uneven gasket compression due to improper bolt load
Incorrect torque sequencing during installation
Bolt relaxation caused by thermal cycling
Creep or plastic deformation in bolts after repeated startups
Using mismatched fasteners or worn gaskets during maintenance

Real-world failures often occur at HRSG drain flange points, turbine casing connections, bypass valve manifolds, or steam header joints — especially after cycling starts. These failures result in:

Hot spots and insulation damage
Energy losses and emission excursions
Unscheduled shutdowns during peak loads
Time-consuming rework under unsafe conditions

The solution isn’t more parts — it’s smarter protocols.

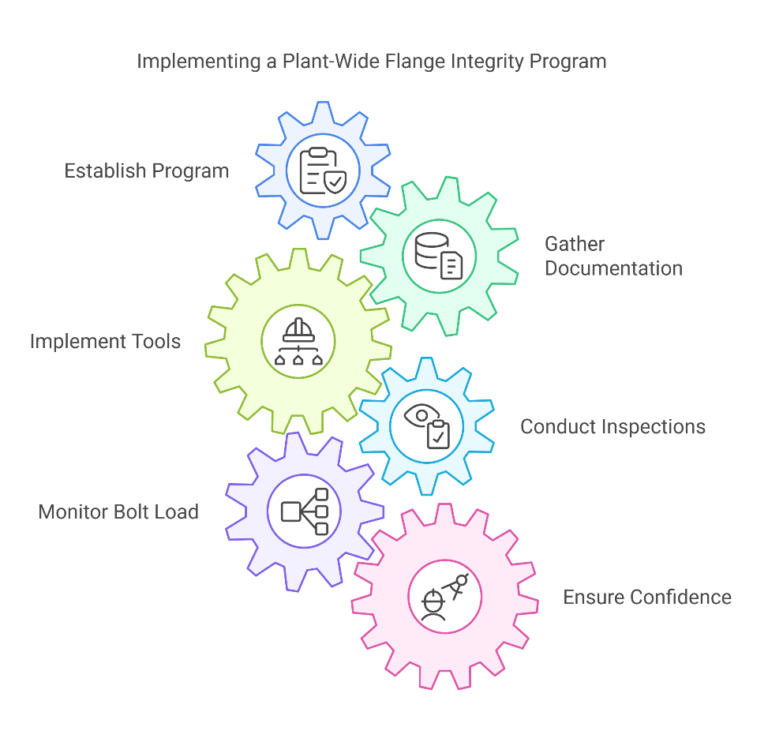

2. Build a Plant-Wide flange management and bolted joint integrity Program That Engineers Trust

Imagine if every joint in your plant had a data sheet, closure report, torque chart, and maintenance log — all in one place. A plant-wide flange management and bolted joint integrity program typically includes:

Material traceability records for each bolt, gasket, and flange face
Certified torque wrenches and hydraulic tensioners
Torque sequences and applied load logs for each joint
Pre- and post-installation inspection checklists
QA/QC forms linked to each flange ID during outages

Many plants are adopting bolt load monitoring sensors and real-time preload feedback during major flange closures. These tools transform joint assembly from art to science. ProcureEaze helps source:

Flange management software kits
Digital torque tools with load calibration certificates
Bolt stretch gauges

The result? Engineers have confidence in every joint — not just hope.

3. Choose the Right Gasket — Because Not All Are Created Equal

You wouldn’t wear flip-flops to a marathon. Yet many power plants unknowingly mismatch gaskets to temperature, media, or flange surface. Key factors to consider when sourcing gaskets:

Media compatibility: steam, gas, condensate, chemicals
Pressure class: ASME 150–2500, or DIN equivalents
Operating temperature: up to 1100°F (593°C) in HRSG zones
Surface finish and flange type: RF, RTJ, flat face
Material reactivity: graphite, PTFE, SS 316, Inconel

Popular gasket types we help plants source:

Spiral wound gaskets with graphite filler
PTFE envelope gaskets for chemical or condensate use
Corrugated metal gaskets for reusability
Kammprofile gaskets with grooved sealing

All provided with batch certificates, compliance data, and origin traceability. Bonus Tip: Always inspect flange surface roughness before reinstalling gaskets — often the hidden root of sealing failures.

4. Master the Science of Bolting: Torque, Tension & Technique

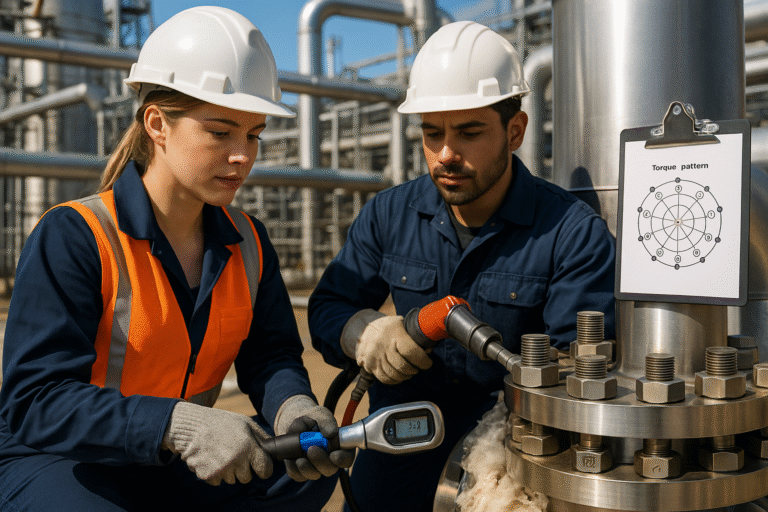

Bolting isn’t about tightness — it’s about preload consistency across all studs. High-integrity bolted joints require:

Correct bolt material (ASTM A193 B7/B16)
Compatible nut grade (ASTM A194 2H/7L)
Uniform thread lubrication (moly grease or anti-seize)
Sequential torque patterns (star or quadrant)
Load verification (torque vs. tension correlation)

Torque alone is only 70–80% accurate without load verification. That’s why tensioning systems and bolt elongation gauges are now the gold standard. We help source:

Hydraulic bolt tensioners
Calibrated torque multipliers (manual & pneumatic)
Digital torque wrenches with data logging
Heat-resistant lubricants for high-temperature flanges

One of our clients reduced flange rework time by 40% just by upgrading to digital torque validation tools.

5. Treat Every Shutdown as a Joint Integrity Audit

A CCPP shutdown isn’t just about tube bundles and valves — it’s a window to re-certify every joint you touch. Include these steps during planned outages:

Pre-removal flange face photography
Bolt elongation measurement before reuse
Gasket seating surface profile check
Controlled flange reassembly with QA witness
Load verification on at least 10% of joints

Using bolt stress washers or visual preload indicators ensures operators don’t guess. At ProcureEaze, we supply:

Bolt ID marking tags and torque record templates
Flange face profile gauges
Reusable digital torque application checklists

You can’t improve what you don’t measure — and flange integrity is no exception.

6. Integrate Flange Kits Into Your Preventive Procurement Plan

Most plants don’t fail for lack of parts — they fail for lack of foresight. Instead of chasing gaskets or bolts mid-outage, pre-build flange kits for:

Major HRSG disassembly points
High-pressure turbine inlet flanges
Condensate loop inspection drains
Steam bypass line flange sets

Smart procurement includes:

Pre-kitting by flange number and BOM
Storing vendor-matched equivalents for all critical gaskets
Creating outage-ready flange packs with labeled torque cards

We help assemble these kits in advance — and deliver globally.

7. Work with Vendors Who Understand the Real Stakes

Flange kits are not pipe fittings. They are pressure boundaries operating under stress, vibration, and high temperatures. That’s why we help CCPP clients source from vendors who specialize in power-grade flange kits: Our support includes:

Multi-country quote packages (U.S., UK, EU, India, etc.)
API/ASME and EN/DIN certified products
Import documents, mill test certificates (MTCs), and packing lists
Spec review support with your engineering and QA team

If your RFQ doesn’t match your actual bolting application, we help rewrite it.

Final Word: Seal Reliability, Not Just Joints

In a high-stakes plant environment like a Combined Cycle Power Plant, flange failures aren’t just mechanical — they’re operational. A leak today is a shutdown tomorrow.

But every leak you prevent, every preload you verify, every gasket you spec right— it all adds up to a plant that runs cleaner, longer, and more confidently.

And with ProcureEaze by your side, sourcing flange management and bolted joint integrity program doesn’t have to be stressful — it just has to be smart.
